G200.3/ G220
Turn-mill center

  • Spindle clearance  76 mm
  • Chuck diameter 230 mm
  • 207 Nm max. torque
  • Turning length 900 mm

Turn-mill centers for high productivity and flexibility

New dimensions in turning and milling


Machine highlights INDEX G200.3 / INDEX G220

Your benefits

  • Identical main and counter spindles with a spindle clearance of Ø 76 mm
  • Chuck up to Ø 230 mm
  • 3 tool carriers for up to 169 tools
  • Powerful motor milling spindle with proven Y/B quill kinematics for complex 5-axis milling operations (G220)
  • Sophisticated working area concept for turning lengths up to 900 mm and variable machining options
  • High thermal and mechanical stability
  • High acceleration and fast rapid traverse rates up to 50 m/min
  • Easy setup
  • Engineering excellence “Made in Germany”

G200.3 / G220 in Focus

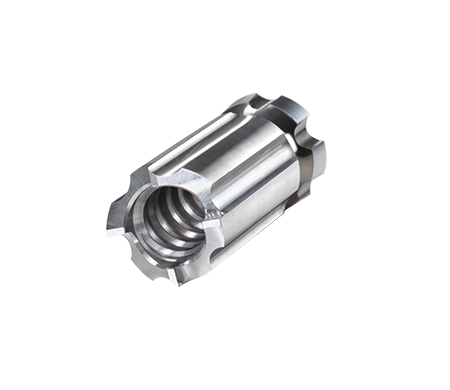

Wide range of parts

INDEX provides optimal solutions for flexible and efficient production.
Its engineers have integrated years of experience leveraged from many industries into the product development process. Products and processes are then tailored to specific customer needs through feasibility studies, efficiency analyses, and, above all, close collaboration with the customer. INDEX products are modular in design and highly flexible, giving customers access to an extensive modular system for a solution that perfectly matches their application.
The INDEX G200.3 and INDEX G220 turn-mill centers offer the best performance for customers from the machinery, automotive, and aerospace industries. Providing an ideal combination of productivity, flexibility and process reliability, the machine is a complete solution for high-performance machining of smaller workpieces


The modular system

The modular system in this series offers a wide range of options. Up to 3 tool carriers can be integrated into the work area, and all of them can be equipped with a Y axis. The work area offers ample space to machine any kind of workpiece, accommodating parts up to a length of 900 mm.
The powerful main and counter spindles are designed for bar diameters up to 76 mm and for chuck part diameters of up to 230 mm. Turret steady rests are available for machining long or shafttype parts.
The INDEX G220 features a powerful motor milling spindle capable of simultaneous 5-axis machining. The ergonomic setup and operating concept played a major role in the new design.
All the relevant components are easily accessible for operating and maintenance personnel. Optionally, an integrated workpiece handling system matched to the machining processes can be used for loading and unloading shaft and flange parts. The modular robot cell iXcenter is available for all machines in this series, for flexible feeding and discharging of blanks and finished parts.


Integrated automation solutions

The integrated workpiece handling unit is available as an option. It can be used equally for loading and unloading, as well as for the removal of remnants. The system is designed for parts
weighing up to 7.5/2x10 kg with a diameter of up to 90 mm (shaft) or 230 mm (flange).
The handling unit is equipped with 2 or 3 CNC axes and single or double grippers, which are operated from the machine control.
Further individual automation solutions, such as conveyor belts or robot handling unit with auxiliary functions, can be integrated to customer specifications.


Steuerung


Technical data

INDEX G200.3 & INDEX G220

expand all
Bar capacity
mm
76
Chuck diameter
mm
230
Speed max.
rpm
6,000
Power at 100% / 40%
kW
29 / 40
Torque at 100% / 40%
Nm
142 // 207
C axis resolution
degree
0.001
Machine
G200
Tooling system
VDI25 // VDI30
Number of stations
15 // 12
Speed max.
rpm
7,500
Power max.
kW
9
Torque at 25%
Nm
20
Slide travel X, rapid traverse, feed force
mm / m/min / N
260 / 30 / 6,000
Slide travel Y, rapid traverse, feed force
mm / m/min / N
+80/-60 / 20 / 9,000
Slide travel Z, rapid traverse, feed force
mm / m/min / N
1,020 / 50 / 6,000
Machine
G220
Tooling system
HSK-T63 // HSK-T40
Speed max.
rpm
12,000 // 18,000
Power max.
kW
16 // 11
Torque at 25%
Nm
72 // 30
Slide travel X, rapid traverse, feed force
mm / m/min / N
490 / 30 / 6,000
Slide travel Y, rapid traverse, feed force
mm / m/min / N
+90/-60 / 20 / 9,000
Slide travel Z, rapid traverse, feed force
mm / m/min / N
910 / 50 / 6,000
B-axis swivel angle
degrees/rpm
-25 / +205 (+/- 115) / 100
Tooling system
VDI25 // VDI30
Number of stations
15 // 12
Speed max.
rpm
7,500
Power at 25 %
kW
9
Torque max.
Nm
20
Slide travel X, rapid traverse, feed force
mm / m/min / N
180 / 30 / 6,000
Slide travel Y, rapid traverse, feed force
mm / m/min / N
± 50 / 20 / 9,000
Slide travel Z, rapid traverse, feed force
mm / m/min / N
970 / 55 / 6,000
Machine
G220
Tooling system
HSK-T63 / HSK-T40
Number of stations
52 (103) / 70 (139)
Tool weight max.
kg
5 / 4
Tool diameter max.
mm
100
Tool length max.
mm
300
Clamping range
mm
6-70
Workpiece weight max.
kg
10
Workpiece diameter max.
mm
76
Workpiece length max.
mm
250
Max. workpiece diameter, flange/shaft
mm
230/90
Max. workpiece weight, flange/shaft
kg
2x10 / 2x10
Max. workpiece length, flange/shaft
mm
250 / 500
Length x width x height
mm
3,590 x 2,750 x 2,500
Weight
kg
G200.3 - 14.000 // G220 - 14.500
Connecting power
kW
71
Siemens
S840D sl
Multi-Touch Screen
18.5"
