INDEX MS52-6
Multi-spindle automatics

  • 52 mm bar diameter
  • 5,000 rpm max. speed
  • 30 kW max. power
  • 130 Nm max. torque

Multi-spindle machine with innovative rear end machining

A design for the latest production technologies


Machine highlights

Your benefits

  • Highly-dynamic slides with sliding guide (X-axis)
  • Non-wearing Z-axis due to quills with hydrostatic support
  • Chuck part machining with loading and unloading by robots or linear handling units
  • Extremely fast swiveling synchronous spindles with C-axis
  • Swing arm is locked by three-piece Hirth coupling in machining position, ensuring maximum rigidity
  • Maximum of 6 tools for rear end machining per swiveling synchronous spindle
  • Already included: the operating system iXpanel i4.0 ready with 18.5” touch screen and Siemens S840D sl

MS52-6 in focus

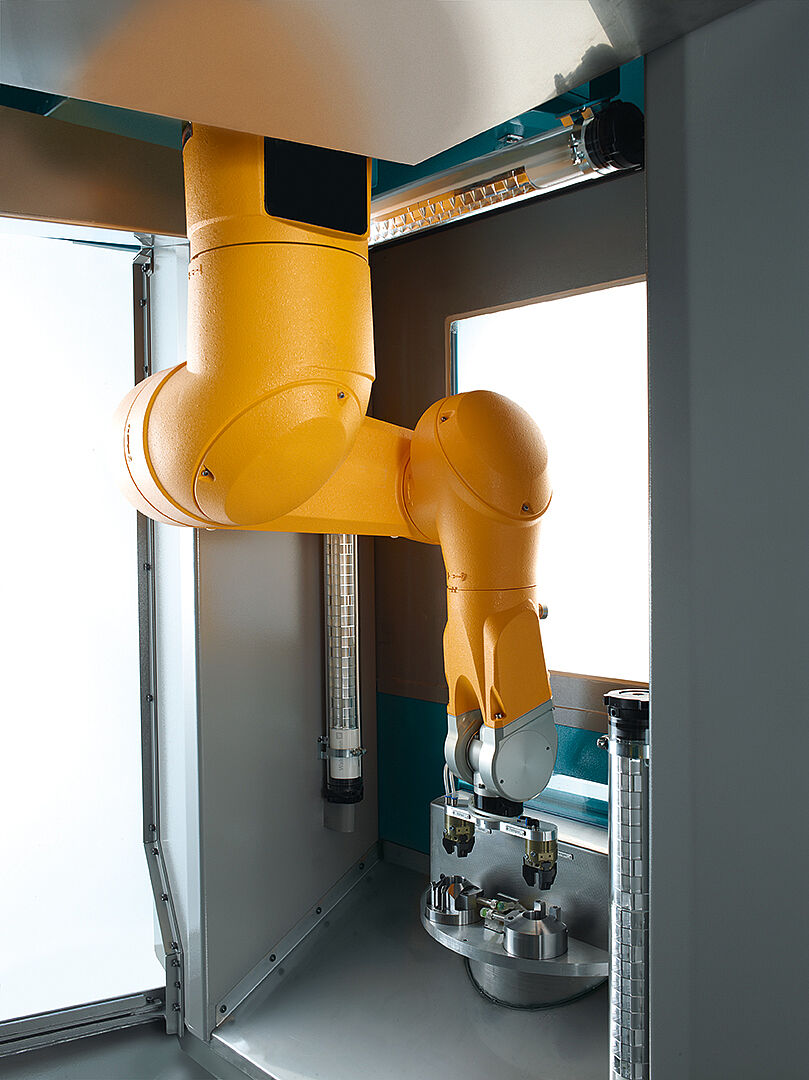

Robot as productivity factor

Automated workpiece handling with robot ensures optimum production

  • Flexible, position-oriented loading and unloading in all 6 spindle positions by a robot integrated in the work area featuring a double gripper
  • Damage-free feed and discharge even for delicate parts
  • Short loading and unloading times, including in conjunction with 2-fold or 4-fold gripper for double 3-spindle production
  • Ideally suited for pick-and-place as the interface to conveyor belts or palletizing systems
  • Machining of preshaped parts, forged or extruded parts up to approx. 125 mm

The swivel disk: Transfer to the peripheral handling interface

  • Standardized interface (both mechanical and electrical)
  • Closed system and, thus, hardly any oil discharge

Machining options

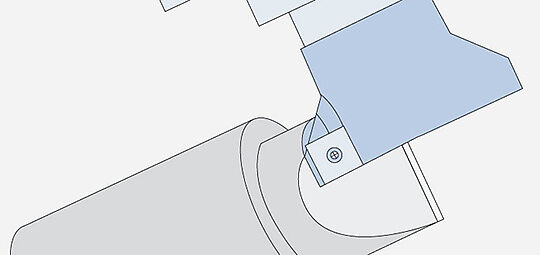

Milling

Milling with live tool in the following variants:

  • Side milling cutter in conjunction with C-axis operation (transmit function)
  • End milling cutter in conjunction with Y-axis operation
  • Plunge milling

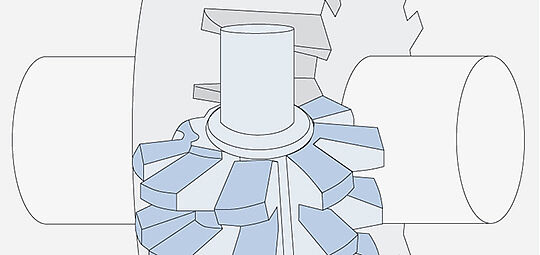

Gear cutting, hobbing

  • Coupled with electronic precision
  • Requirements with maximum stability
  • Toothing in correct position relative to other surfaces or shaped elements
  • Any angular offset can be programmed
  • Greater tool service life due to shifting with Y-axis

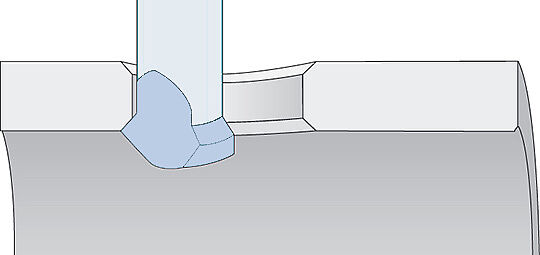

Elliptical deburring

Uniform deburring (even chip removal) of cross-drill holes based on interpolation of the C-axis, X-axis, and Z-axis with live tool.


Technical data

expand all
Number max.
6
Bar capacity
mm
52
Speed max.
rpm
5,000
Power at 100% / 25%
kW
20 / 30
Torque at 100% / 25%
Nm
88 / 130
Number max.
1 / 2
Bar capacity
mm
52
Speed max.
rpm
6,000
Power at 100% / 40%
kW
5.7 / 7.2
Torque at 100% / 40%
Nm
18 / 23
Slide travel Z
mm
132
Number of tools for backworking
3 / 6
Number max.
12
Slide travel X
mm
100
Slide travel Y
mm
56
Slide travel Z
mm
180
Number max.
1 / 2
Slide travel X
mm
82
Number of tools for backworking
3
Weight
kg
12,000
Connecting power
kW
94-127
Length x width x height - long version
mm
4.030 x 2.232 x 3.129
Siemens
S840D sl
Multi-Touch Screen
18.5"
Request a quote for INDEX MS52
You receive a quote for an INDEX MS52 according to standard configuration.
