INDEX C200
Production turning machine

  •  65 (90) mm spindle clearance
  •  160 mm chuck diameter
  •  550 mm turning length

Production turning machine for highly productive bar machining

The INDEX C200 – a turning machine for complex workpieces


Machine highlights

Your benefits

  • Fast production of bar turned parts
  • Generous work area for complete machining of workpieces
  • The INDEX SingleSlide guide system ensures a significantly faster dynamic response.
  • High acceleration (1g) and high rapid traverses (60 m/min)
  • 2 powerful motor spindles of identical design

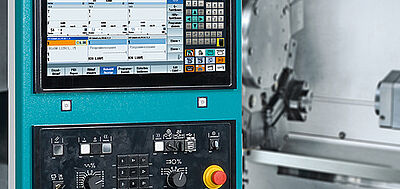

  • Siemens S840D sl (18.5” touch screen ) or Fanuc 31i-B control (15” touch screen ) offers economic and productive solutions at any time
  • Already included: the operating system iXpanel - i4.0 ready

C200 in focus


Workspace INDEX C200

With the INDEX C100 and INDEX C200 production turning machines, new opportunities open up for high-speed production of parts turned from bar stock. Despite their compact exterior dimensions, the INDEX C100 and INDEX C200 as 2 or 3-turret-machines offer a spacious working area for the complete machining of workpieces. The guideway system INDEX SingleSlide guarantees substantially high dynamics with optimum vibration damping.
This has a very positive effect on workpiece quality and tool life, with simultaneously reduced cycle times.

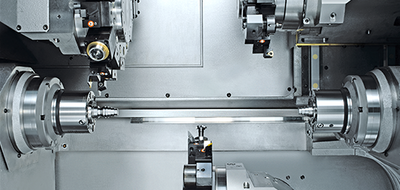

View into the work area

The INDEX C200 opens up new opportunities for high-speed production of parts turned from bar stock.
Despite its compact external dimensions, the INDEX C200 has a large-sized working area for complete machining of workpieces.

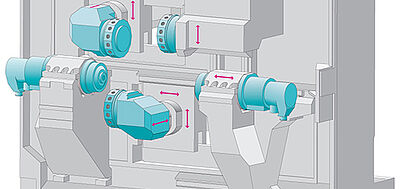

The kinematics

The vertical design of the machine bed guarantees optimum chip removal and ready access.
2 x Y axes on the main-spindle or 1 x each on the main and counter spindles possible.
This allows an optimum division even of complex operations and a reduction of cycle times.

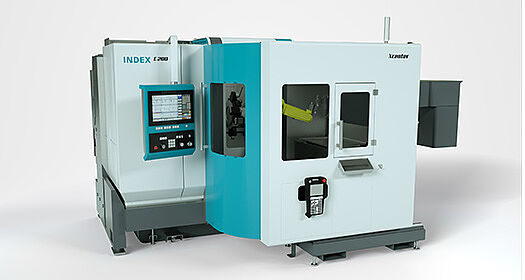

iXcenter robot cell

Intelligent automation – even more flexibility and efficiency

With the optional robotic cell iXcenter, blanks and/or finished parts can be supplied and discharged quickly, safely and flexibly. The robot cell is integrated ergonomically into the machine. It can be moved easily to the left during the setup process, allowing unobstructed access to the work area. During production, the iXcenter is fixed in front of the machine’s work area. The robot then accesses the work area via the sliding guard of the machine, which opens automatically behind the robot cell.

Simply good handling of blanks and finished parts

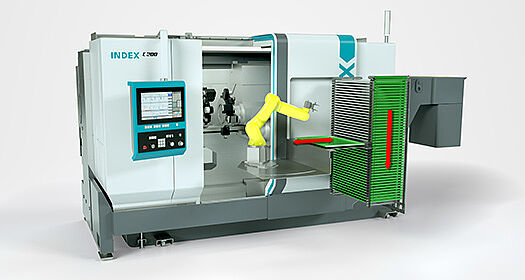

  • Space-saving vertical storage with up to 22 pallets stacked up
  • Pallet size 600 x 400 mm
  • Minimal pallet height 25.4 mm
  • Pallets with blanks are loaded at the top, pallets with finished parts are removed at the bottom – at any time without interrupting production
  • The pallet is pulled in and out by the robot
  • Easy macro-programming

Using more potentials
Subsequent processes such as cleaning, measuring, deburring, etc. can be integrated in the robot cell

Ready to Go

  • 6-axis robot for 7.5 kg payload with integrated gripper control
  • Double gripper included in the standard
  • 22 pallets (without workpiece-specific inlays) are included in the standard
  • Easy in-house relocation

WE NEED YOUR CONSENT!

This content is provided by Youtube.

If you activate the content, personal data may be processed and cookies set.

Accept

Technical data

expand all
Bar capacity
mm
65 / 90
Speed max.
rpm
6,000 / 3,500
Power at 40%
kW
32 / 40
Torque at 25%
Nm
170 / 207
C axis resolution
degree
0.001
Bar capacity
mm
65 / 90
Speed max.
rpm
6,000 / 3,500
Control
Siemens
Power at 40%
kW
32 / 40
Torque at 25%
Nm
170 / 207
Slide travel Z, rapid traverse
mm / m/min
700 / 50
Control
FANUC (only with spindle clearance 65 mm)
Power at 40%
kW
32
Torque at 25%
Nm
160
C axis resolution
degree
0.001
Number of stations
VDI25: 14 // VDI30: 10
Speed max.
rpm
8,000
Power at 25 %
kW
10
Torque at 25%
Nm
16
Slide travel X, rapid traverse
mm / m/min
110 / 30
Slide travel Y, rapid traverse
mm / m/min
100 / 15
Slide travel Z, rapid traverse
mm / m/min
320 / 50
Slide travel X, rapid traverse
mm / m/min
110 / 30
Slide travel Y, rapid traverse
mm / m/min
100 / 15
Slide travel Z, rapid traverse
mm / m/min
550 / 50
Slide travel X, rapid traverse
mm / m/min
180 / 30
Workpiece weight max.
kg
3.5
Weight
kg
9,000
Connecting power
kW
72
Length x width x height - long version
mm
6,910 x 2,092 x 2,490
Siemens
S840D sl
FANUC
Version 31i-B
Request a quote for INDEX C200
You receive a quote for an INDEX C200 according to standard configuration.
