MBL22-6/ 22-8/ 24-6/ 32-6/ 40-6/ 40-8
Bar loading magazine

  • Hydrodynamic guide concept
  • Bar loading magazine and machine from one source

Productivity boost with the bar loading magazine

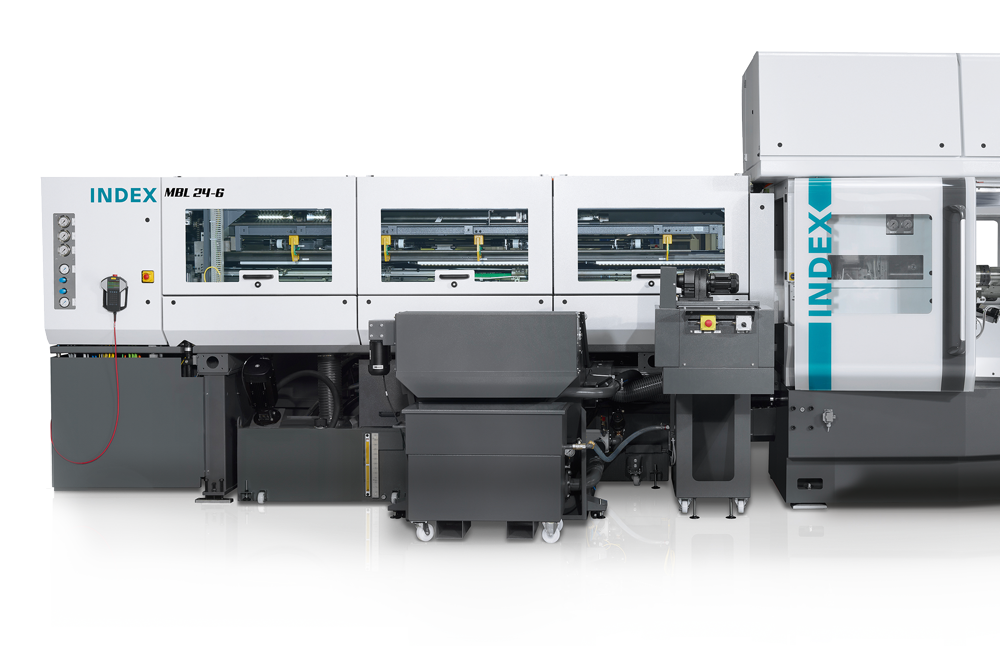

Bar loader for the INDEX multi-spindle automatic lathe


Highlights bar loading magazine MBL22-8/ 24-6/ 32-6/ 40-6/ 40-8

Your benefits

  • The bars are drilled in parallel to the main time of the machine, which allows for very quick bar changes
  • In many cases, higher maximum speeds possible
  • Setting up the loading side and drilling unit during production
  • Material feeding on the loading side and setup of the drilling unit during production

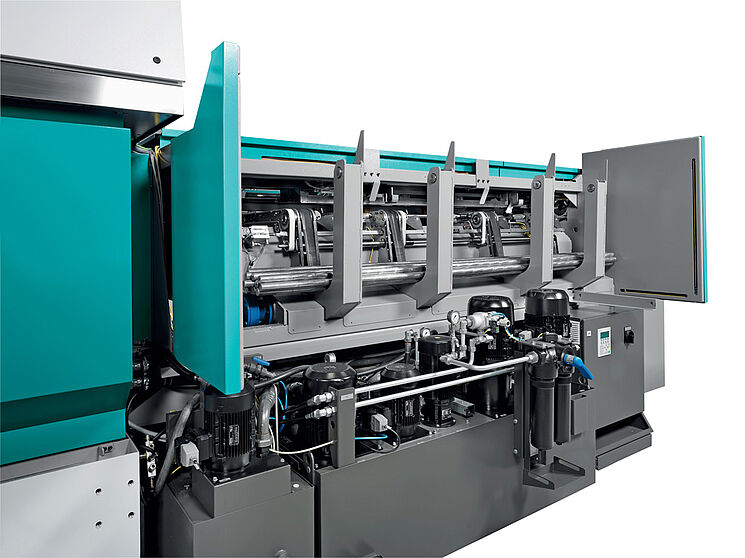

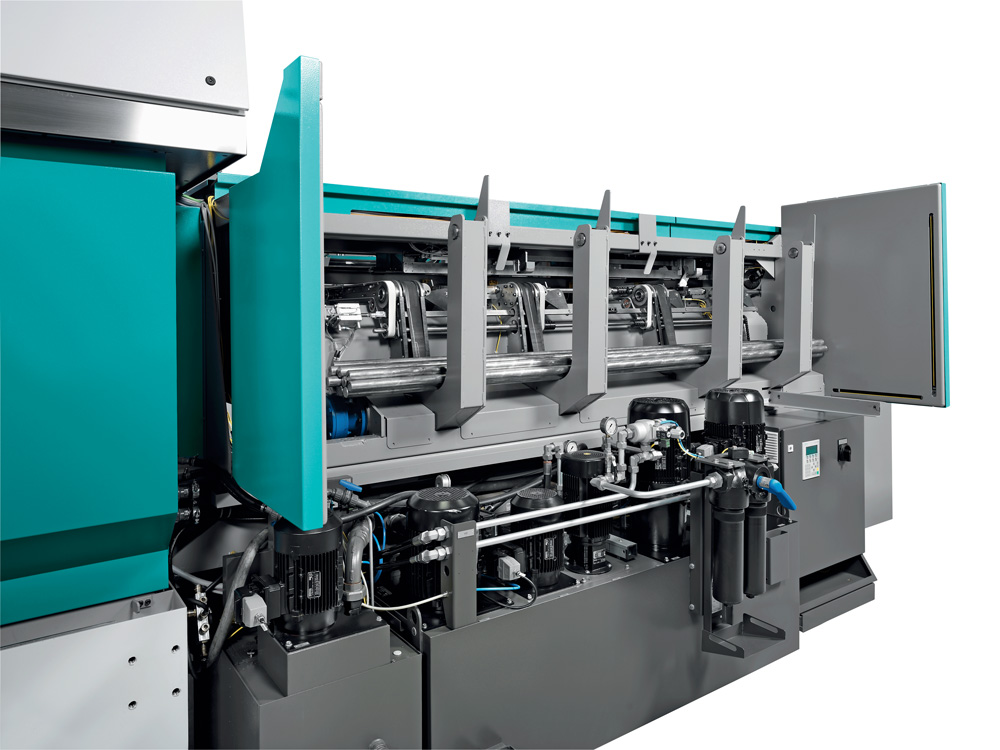

  • Easy access through large doors on the front
  • Vibration-damping design
  • Feeding bars in all positions by the NC motor
  • Bar loading magazine in 2 versions:
    - Version 3300: Bar length from 1500 - 3300 mm
    - Version 4300: Bar length from 2000 - 4300 mm

Bar loader in focus


Guiding principle

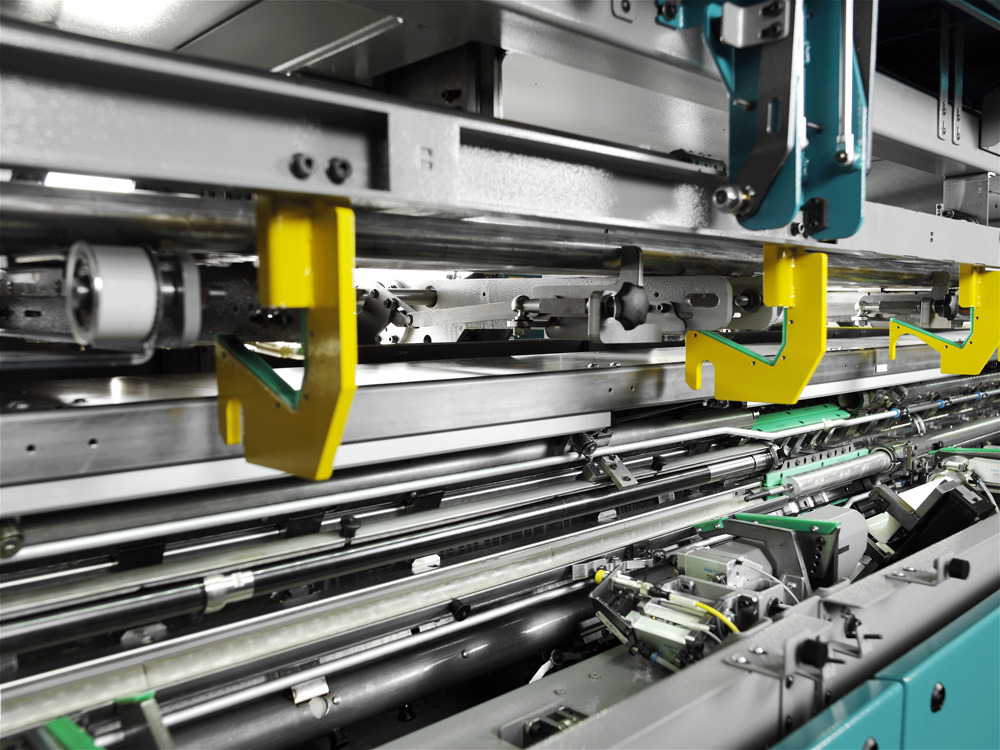

Hydrodynamic guide of bars in oil-flooded channels made of sliding bearing material

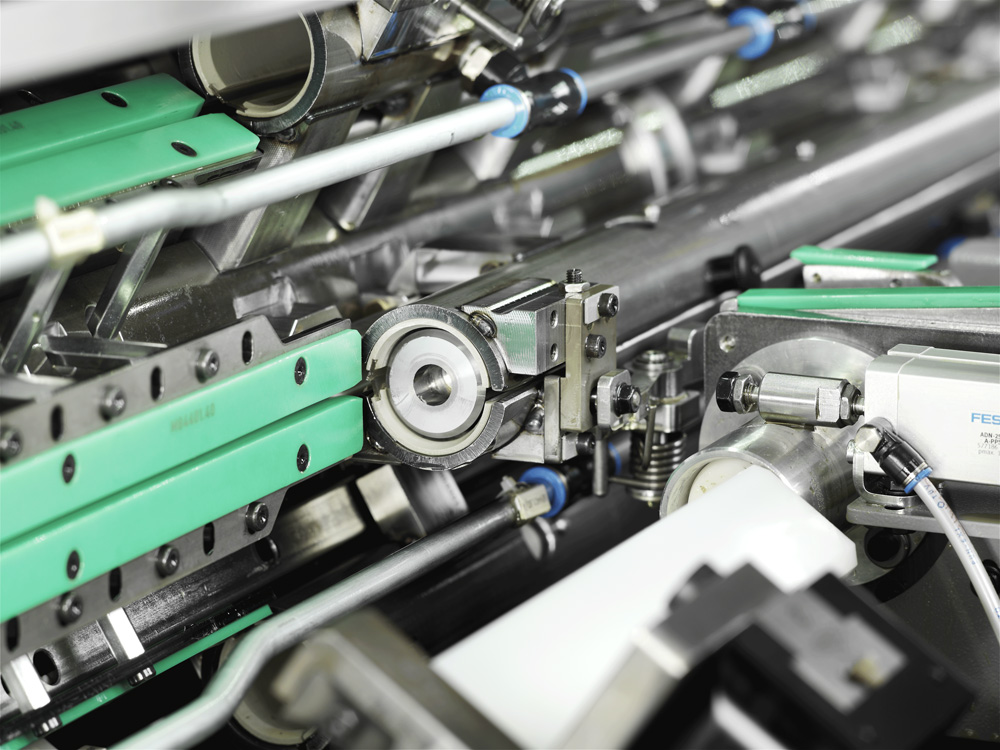

  • The channels are adapted to the bar diameter with plastic reducers (bearing half-shells). Simple clip fasteners facilitate the setup of the bearing half shells.
  • This results in optimum guidance of the bar stock.
  • The guiding principle is suitable also for polygon bars.

Modular component system

Bundle loader
Rack loader
Basic loader

Technical data MBL22-8

expand all
Round, dia.
mm
5 - 22 (24)
Hexagon, size
mm
5 -19
Bar length - Version 3300
mm
1,00 - 3,300
Bar length - Version 4300
mm
2,000 - 4,300
Rack loader, load capacity
mm
700
Bundle loader, Ø 300 mm
kg
max. 2000
Speed max.
rpm
10,000

Technical data MBL24-6

expand all
Round, dia.
mm
7 - 24
Hexagon, size
mm
6 -20
Bar length - Version 3300
mm
1,00 - 3,300
Bar length - Version 4300
mm
2,000 - 4,300
Rack loader, load capacity
mm
700
Bundle loader, Ø 300 mm
kg
max. 2000
Speed max.
rpm
10,000

Technical data MB32-6

expand all
Number max.
6
Bar capacity
mm
32
Speed max.
rpm
8,000
Power at 100% / 25%
kW
10.5 / 19.0
Torque at 100% / 25%
Nm
22 / 40
Number max.
2
Chuck diameter
mm
40
Speed max.
rpm
8,000
Power at 100% / 40%
kW
10 / 14
Torque at 100% / 40%
Nm
16 / 22
Slide travel Z
mm
130
Number of tools for backworking
6
Number max.
12
Slide travel X
mm
72
Slide travel Y
mm
34
Slide travel Z
mm
100
Weight
kg
7,200
Connecting power
kW
34-74
Length x width x height - long version
mm
3.365 x 1.966 x 2.854
Siemens
S840D sl
Multi-Touch Screen
18.5"

Technical data MBL40-6 and MBL40-8

expand all
Round, dia.
mm
13 - 40
Hexagon, size
mm
12 -34
Bar length - Version 3300
mm
1500 - 3300
Bar length - Version 4300
mm
2000 - 4300
Rack loader, load capacity
mm
700
Bundle loader, Ø 300 mm
kg
max. 2000
Speed max.
rpm
7,000
Request a quote for MBL Multispindle
You receive a quote for MBL Multispindle according to standard configuration.

Downloads

pdf
pdf
pdf
Brochure

INDEX MBL22-8, MBL40-6 und MBL40-8

Bar loading magazine for INDEX Multi Spindle
Request
pdf - 595 KB
Request
pdf - 596 KB
Request
pdf - 603 KB

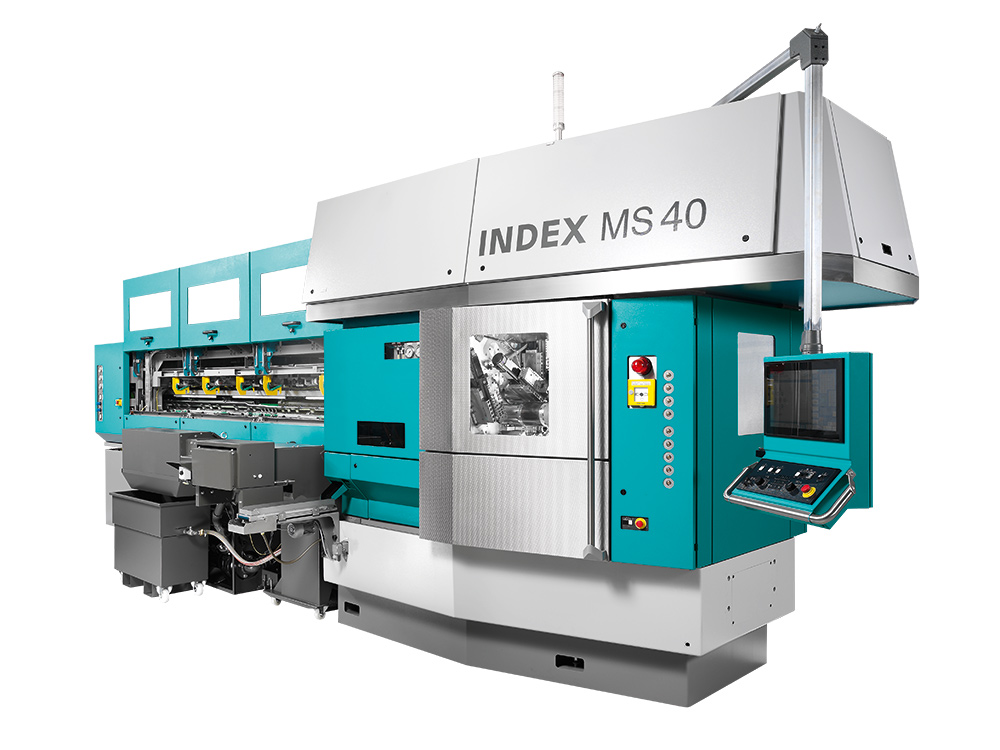

Multi-spindle lathe and bar loading magazine from one source

The bar loaders are perfectly matched to the high-performance CNC multi-spindle machine INDEX MS40.
