INDEX MS40-6
Multi-spindle automatics

  • 40 mm bar diameter
  • 7,000 rpm max. speed
  • 24 kW max. power
  • 57 Nm max. torque

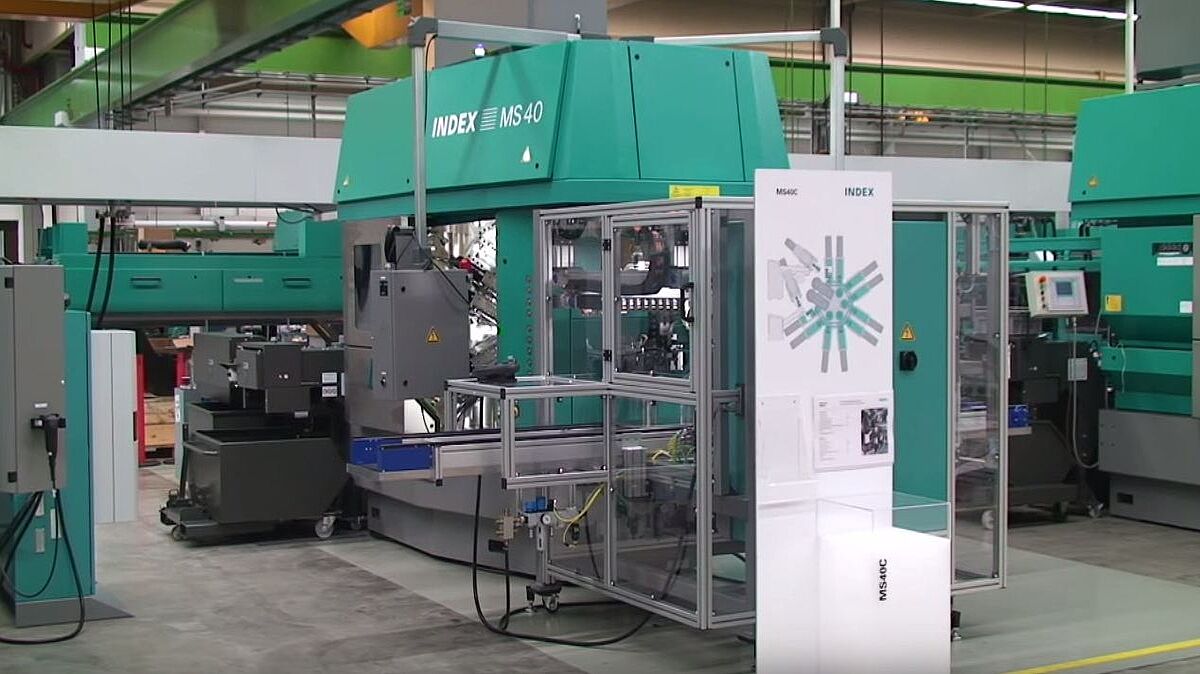

CNC multi-spindle machine MS40-6: The standard to beat!

A machine concept that meets all requirements and the highest demands.


Machine highlights

Your benefits

  • Highly-dynamic slides with sliding guide (X-axis)
  • Non-wearing Z-axis due to quills with hydrodynamic support
  • Front-opening machine for bar machining
  • Chuck part machining with loading and unloading by robots or linear handling units
  • Swing arm is locked by three-piece Hirth coupling in machining position, ensuring maximum rigidity
  • Maximum of 6 tools for rear end machining per swiveling synchronous spindle
  • Already included: the operating system iXpanel i4.0 ready with 18.5” touch screen and Siemens S840D sl

MS40-6 in focus

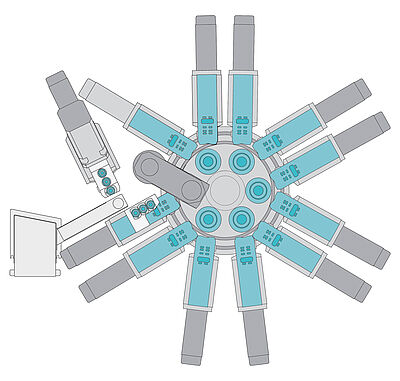

The machine design

  • Up to 6 tools, of which 2 are live
  • Fast swiveling motion and hydraulic locking of the swiveling synchronous spindle via a Hirth coupling
  • Favorable chip flow due to machining outside the main working area
  • Numerous possibilities using live tools in conjunction with C- and Y-axes as well as an electronic shaft

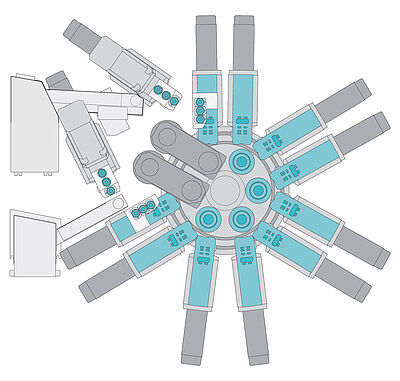

The dual 3-spindle machine

Additional part production time reduction due to simultaneous manufacturing of 2 workpieces
10 tool carriers with 1 or 2 axes (optionally also Y-axis)
2 swiveling synchronous spindles
2 back-boring slides (option) with 3 tools each, of which up to 2 are live

With the same configuration level as a 6-spindle machine with simultaneous reverse-side machining in two spindle positions


Front end machining on 4 main spindles
Simultaneous cutoff-side machining on 2 swiveling synchronous spindles

Technical data

expand all
Number max.
6
Bar capacity
mm
40
Speed max.
rpm
7,000
Power at 100% / 25%
kW
13 / 24
Torque at 100% / 25%
Nm
31 / 57
Number max.
2
Bar capacity
mm
40
Speed max.
rpm
8,000
Power at 100% / 40%
kW
10 / 14
Torque at 100% / 40%
Nm
16 / 22
Slide travel Z
mm
150
Number of tools for backworking
6
Swivel range B
degree
144
Number max.
12
Slide travel X
mm
73
Slide travel Y
mm
42
Slide travel Z
mm
120
Number max.
2
Slide travel X
mm
82
Number of tools for backworking
6
Weight
kg
7,100
Connecting power
kW
65
Siemens
S840D sl
Multi-Touch Screen
18.5"
Request a quote for INDEX MS40
You receive a quote for an INDEX MS40 according to standard configuration.
