TRAUB TNL32 compact
Sliding and fixed headstock automatic lathe for precise and economic machining

  • 32 mm spindle clearance
  • 8,000 rpm max. speed
  • 220 mm max. Z-travel

TRAUB TNL32 compact – productive sliding and fixed headstock turning

Ideal for workpieces of medium and high complexity from bar stock or with an integrated robot cell


Machine highlights TNL32 compact

Your benefits

  • Bar capacity up to ø 32 mm
  • Up to three tool carriers and one rear end machining unit, all with Y axis
  • Simultaneous machining with two, three or four tools
  • Large tool pool for setup-friendly production
  • Short tool change times owing to the CNC indexing axis in the tool turrets and in the front end machining unit
  • Generously dimensioned work area designed for process reliability
  • Flexible hydraulic hollow clamping system on main and counter spindles for clamping tasks with collets and chucks

Machine concept TNL32 compact

The concept of the TNL32 compact machine has been strictly tailored to the daily needs of its users.
For instance, the machine’s kinematics allow for effective and simultaneous machining with two, three or four tools.

The generous and vertically arranged work area provides for the necessary degrees of freedom, as well as for very high process reliability.

The machine’s crucial productivity advantage is the result of its extraordinarily high dynamics.
The machine bed made from gray cast iron and the vibration-damping feet form the basis for the machine’s outstanding dynamic properties.
In addition, the high rigidity and thermal stability ensure optimal workpiece quality.


TNL32 compact in focus

Perform simultaneous and productive machining with two tool turrets together and a front and rear end machining unit.


The 3 configuration variants of the TNL32 compact

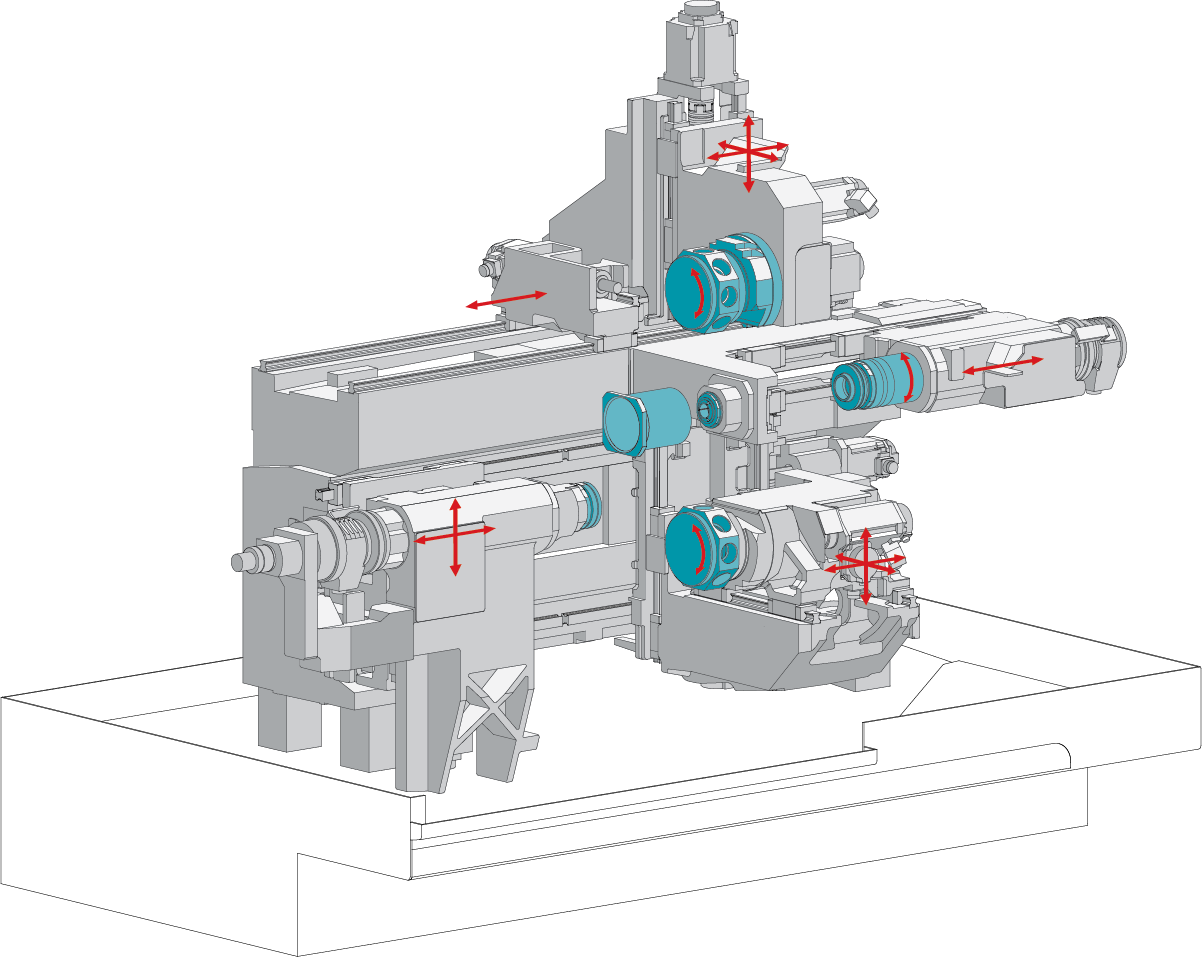

TNL32-9 compact

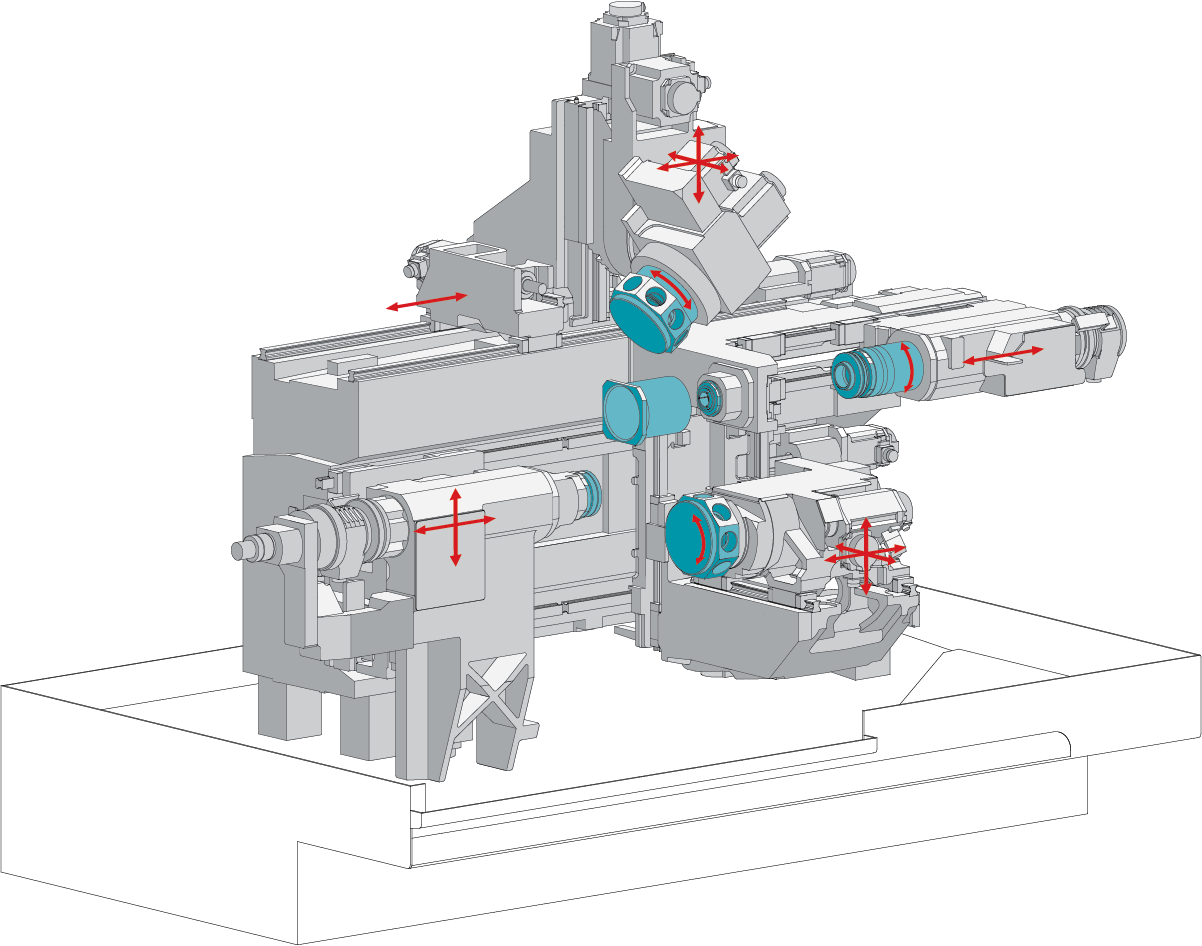

TNL32-9B compact

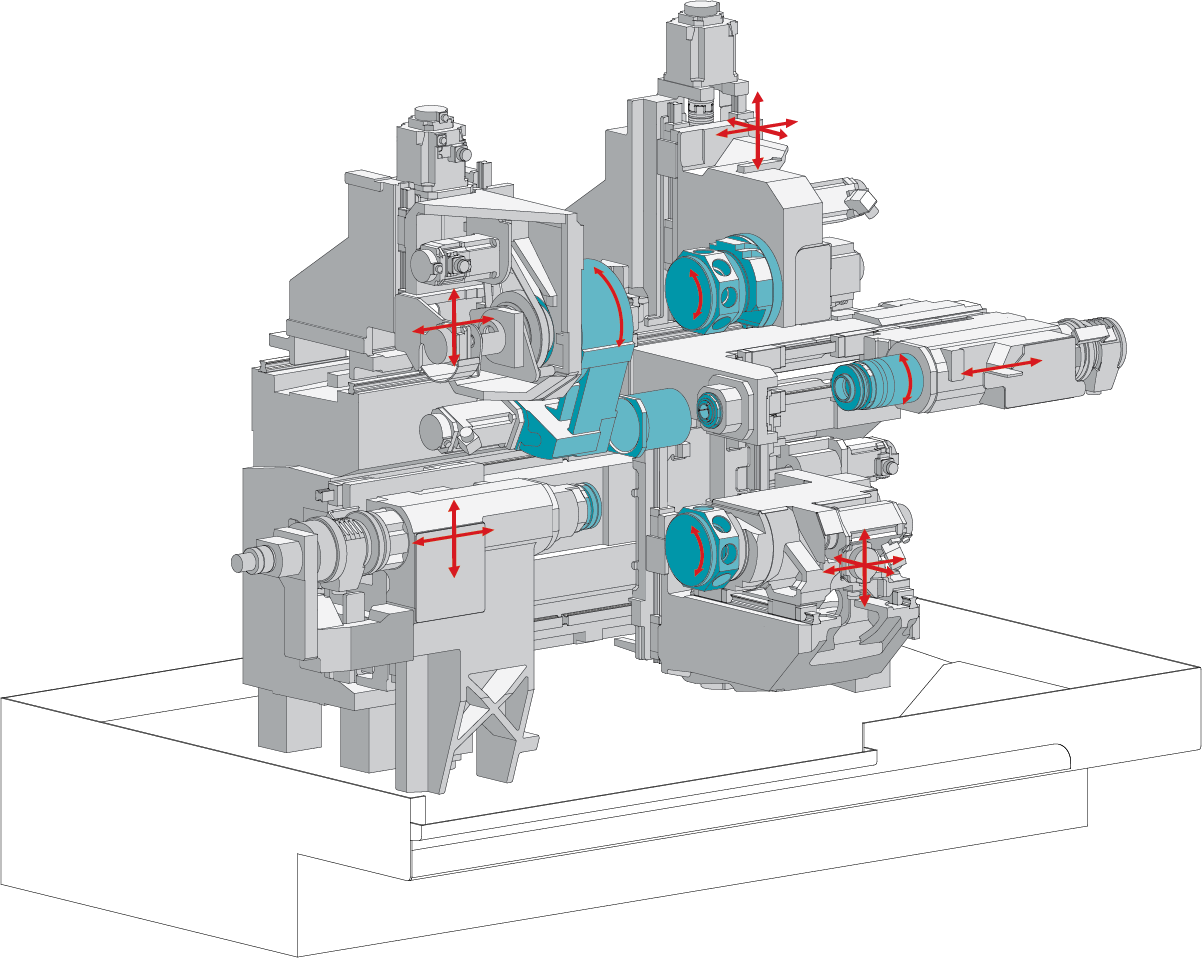

TNL32-11 compact


Technical data TNL32-9 compact

expand all
Bar capacity
mm
32
Speed max.
rpm
8,000
Power at 100% / 40%
kW
9.9 / 13.6 / 18.3
Torque at 100% / 40%
Nm
19 / 26 / 35
C axis resolution
degree
0.001
Slide travel Z (swiss / non-swiss type)
mm
220.3 / 120 (sliding headstock / fixed headstock)
Rapid traverse Z
m/min
25
Bar capacity
mm
32
Speed max.
rpm
8,000
Power at 100% / 40%
kW
9.9 / 13.6 / 18.3
Torque at 100% / 40%
Nm
19 / 26 / 35
C axis resolution
degree
0.001
Slide travel X, rapid traverse
mm / m/min
235.5 / 24
Slide travel Z, rapid traverse
mm / m/min
258 / 25
Number of stations
8
Speed max.
rpm
12,000
Power at 100% / 40%
kW
1.0 / 2.8
Slide travel X, rapid traverse
mm / m/min
120 / 22.5
Slide travel Y, rapid traverse
mm / m/min
50.8 / 25
Slide travel Z, rapid traverse
mm / m/min
254 / 25
Number of stations
8
Speed max.
rpm
12,000
Power at 100% / 40%
kW
1.5 / 4.1
Slide travel X, rapid traverse
mm / m/min
140 / 24
Slide travel Y, rapid traverse
mm / m/min
25.4 / 25
Slide travel Z, rapid traverse
mm / m/min
155 / 25
Number of stations
4
Slide travel X
mm
140
Slide travel Y
mm
25.4
Slide travel Z
mm
155
Weight
kg
5,300
Connecting power
kW
40 (47 kVA)

Technical data TNL32-9B compact

expand all
Bar capacity
mm
32
Speed max.
rpm
8,000
Power at 100% / 40%
kW
9.9 / 13.6 / 18.3
Torque at 100% / 40%
Nm
19 / 26 / 35
C axis resolution
degree
0.001
Slide travel Z (swiss / non-swiss type)
mm
220.3 / 120 (sliding headstock / fixed headstock)
Rapid traverse Z
m/min
25
Bar capacity
mm
32
Speed max.
rpm
8,000
Power at 100% / 40%
kW
9.9 / 13.6 / 18.3
Torque at 100% / 40%
Nm
19 / 26 / 35
C axis resolution
degree
0.001
Slide travel X, rapid traverse
mm / m/min
235.5 / 24
Slide travel Z, rapid traverse
mm / m/min
258 / 25
Number of stations
8
Speed max.
rpm
12,000
Power at 100% / 40%
kW
1.0 / 2.8
Slide travel X, rapid traverse
mm / m/min
165 / 22.5
Slide travel Y, rapid traverse
mm / m/min
50.8 / 25
Slide travel Z, rapid traverse
mm / m/min
567.5 / 50
Number of stations
8
Speed max.
rpm
12,000
Power at 100% / 40%
kW
1.5 / 4.1
Slide travel X, rapid traverse
mm / m/min
140 / 24
Slide travel Y, rapid traverse
mm / m/min
25.4 / 25
Slide travel Z, rapid traverse
mm / m/min
155 / 25
Number of stations
4
Slide travel X
mm
140
Slide travel Y
mm
25.4
Slide travel Z
mm
155
Weight
kg
5,300
Connecting power
kW
40 (47 kVA)

Technical Data TNL32-11 compact

expand all
Bar capacity
mm
32
Speed max.
rpm
8,000
Power at 100% / 40%
kW
9.9 / 13.6 / 18.3
Torque at 100% / 40%
Nm
19 / 26 / 35
C axis resolution
degree
0.001
Slide travel Z (swiss / non-swiss type)
mm
220.3 / 120 (sliding headstock / fixed headstock)
Rapid traverse Z
m/min
25
Bar capacity
mm
32
Speed max.
rpm
8,000
Power at 100% / 40%
kW
9.9 / 13.6 / 18.3
Torque at 100% / 40%
Nm
19 / 26 / 35
C axis resolution
degree
0.001
Slide travel X, rapid traverse
mm / m/min
210.5 / 24
Slide travel Z, rapid traverse
mm / m/min
258 / 25
Number of stations
8
Speed max.
rpm
12,000
Power at 100% / 40%
kW
1.0 / 2.8
Slide travel X, rapid traverse
mm / m/min
120 / 22.5
Slide travel Y, rapid traverse
mm / m/min
50.8 / 25
Slide travel Z, rapid traverse
mm / m/min
205 /25
Number of stations
8
Speed max.
rpm
12,000
Power at 100% / 40%
kW
1.5 / 4.1
Slide travel X, rapid traverse
mm / m/min
140 / 24
Slide travel Y, rapid traverse
mm / m/min
25.4 / 25
Slide travel Z, rapid traverse
mm / m/min
155 / 25
Number of stations
6 / 3
Speed max.
rpm
12,000 / 6,000
Torque at 100% / 25%
Nm
1.5 / 3
Slide travel X, rapid traverse
mm / m/min
51 / 22.5
Slide travel Y
mm
13 (interpolated)
Slide travel Z, rapid traverse
mm / m/min
205 / 25
Number of stations
4
Slide travel X
mm
140
Slide travel Y
mm
25.4
Slide travel Z
mm
155
Weight
kg
5,700
Connecting power
kW
40 (47kVA)
