INDEX MS22-8
Multi-spindle automatics

  • 22 (24) mm bar diameter
  • 10,000 rpm max. speed
  • 15 kW max. power
  • 18 Nm max. torque

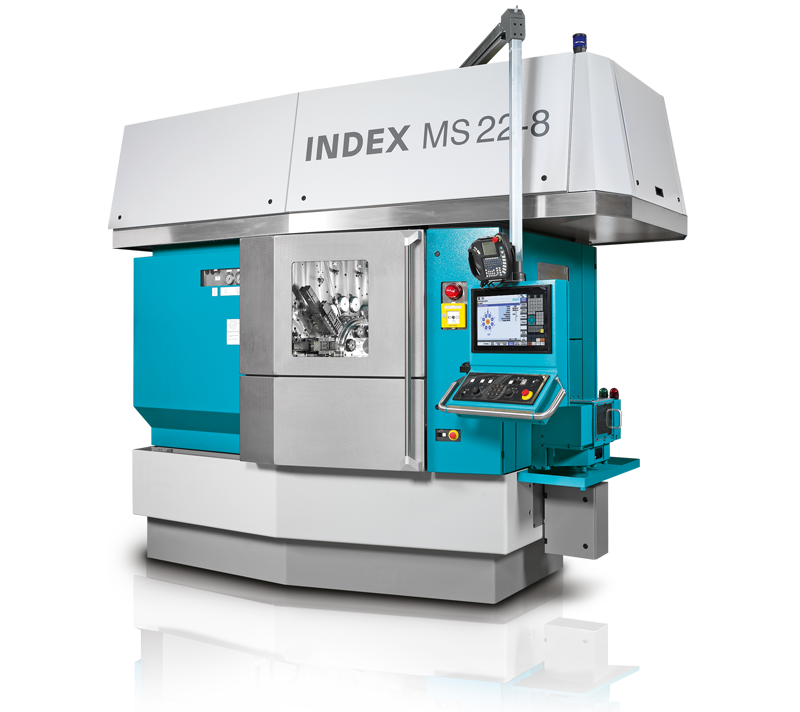

Productive multi-spindle machine with 8 spindles

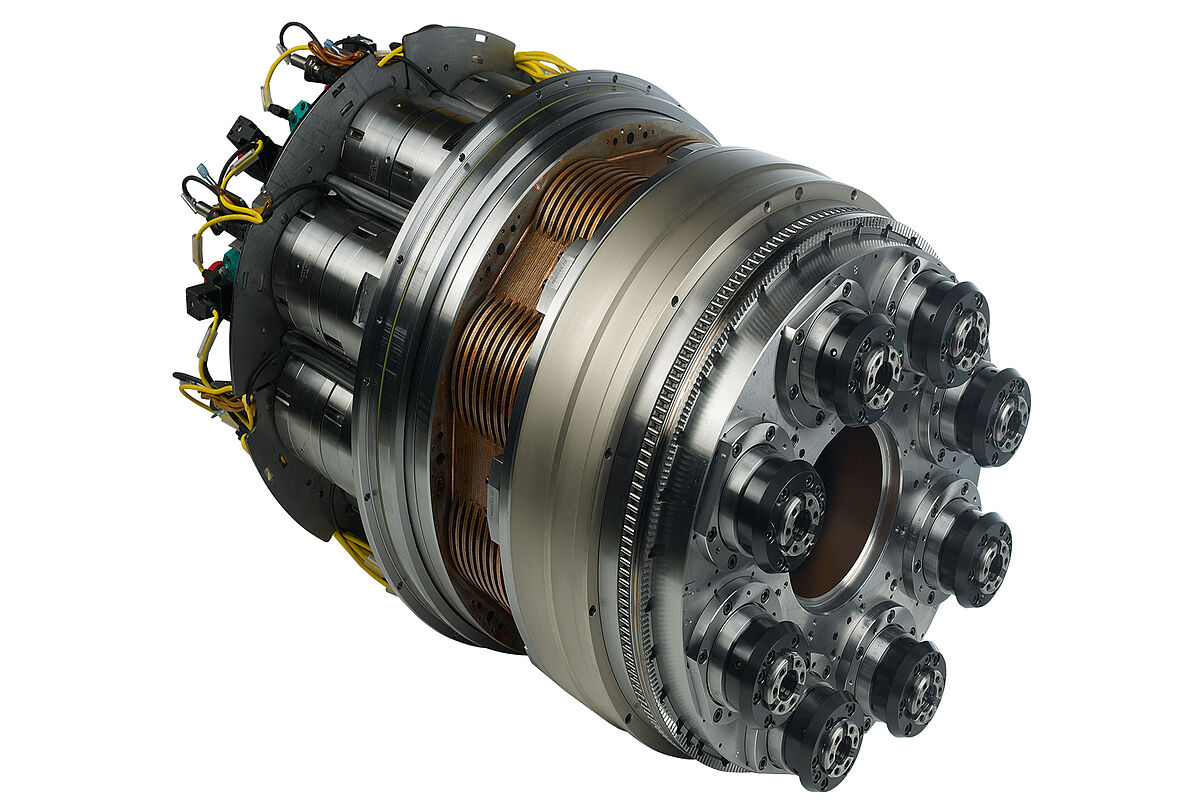

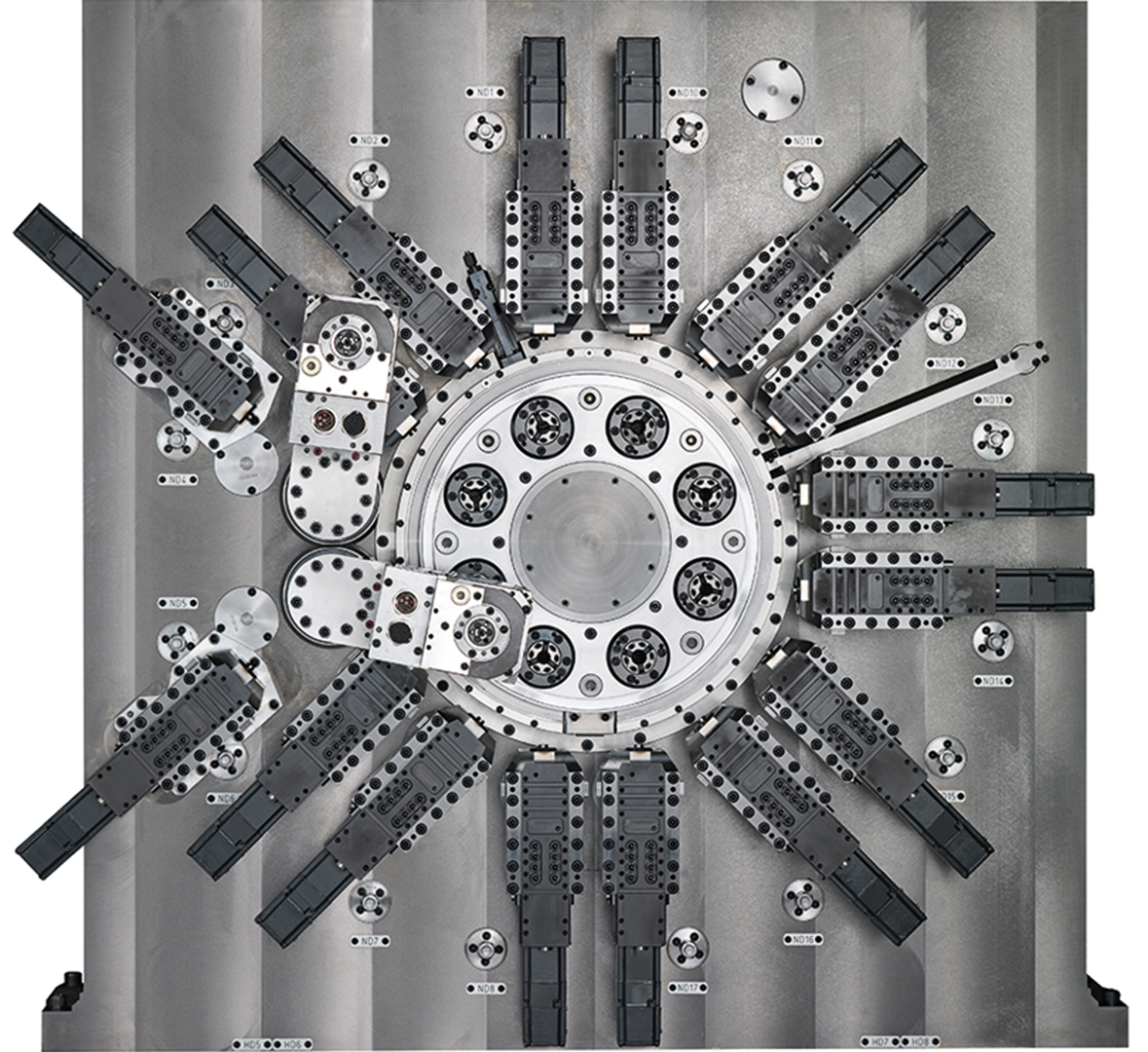

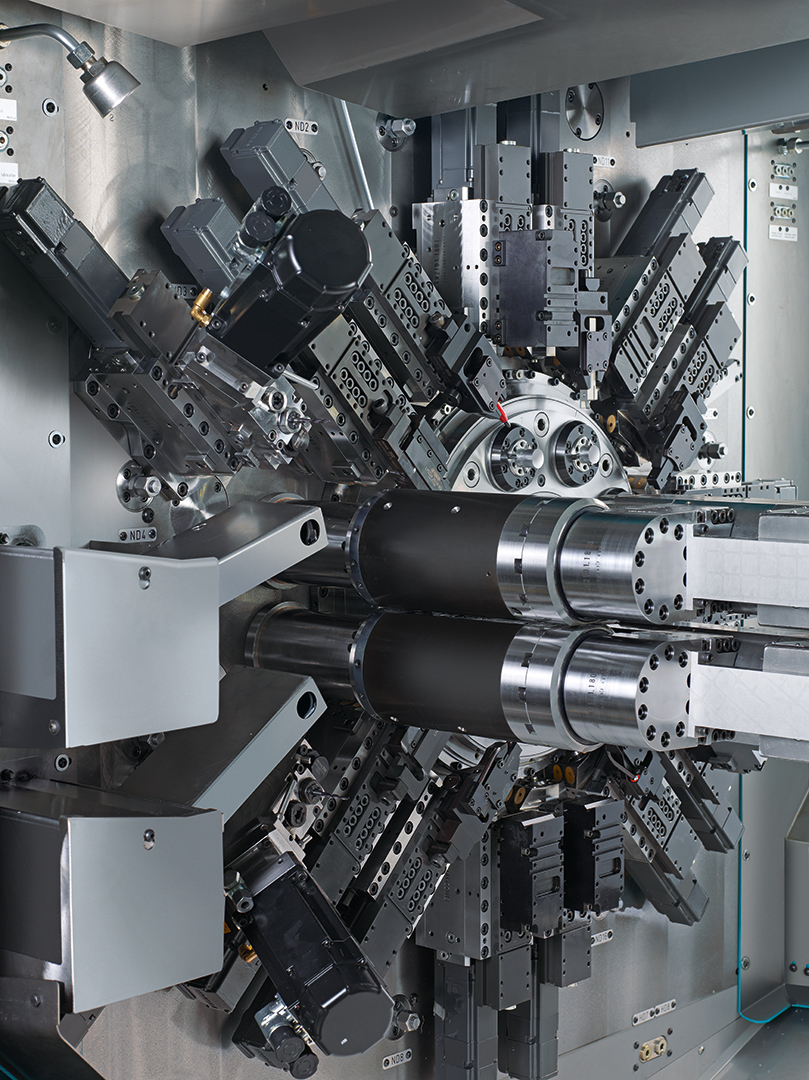

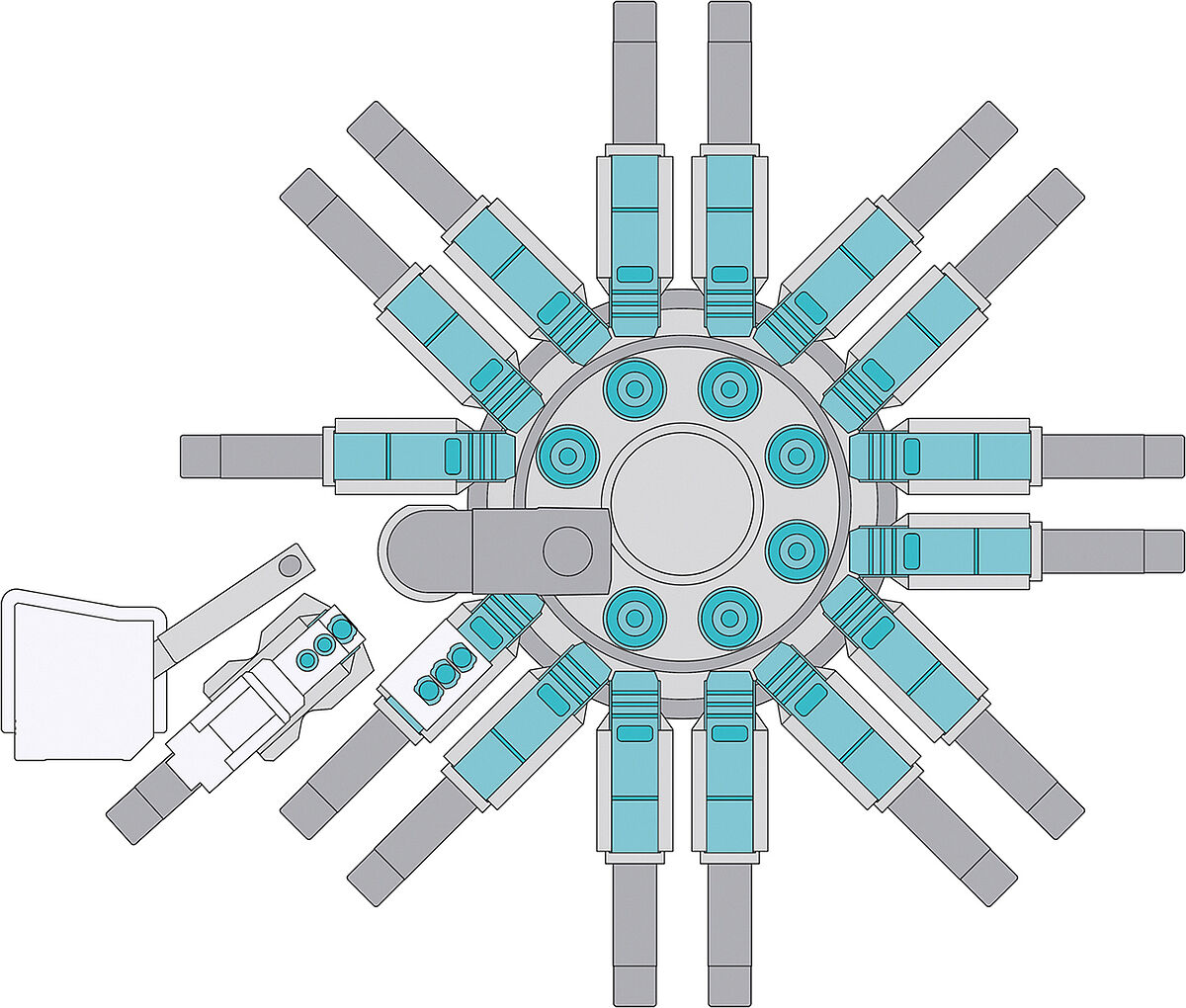

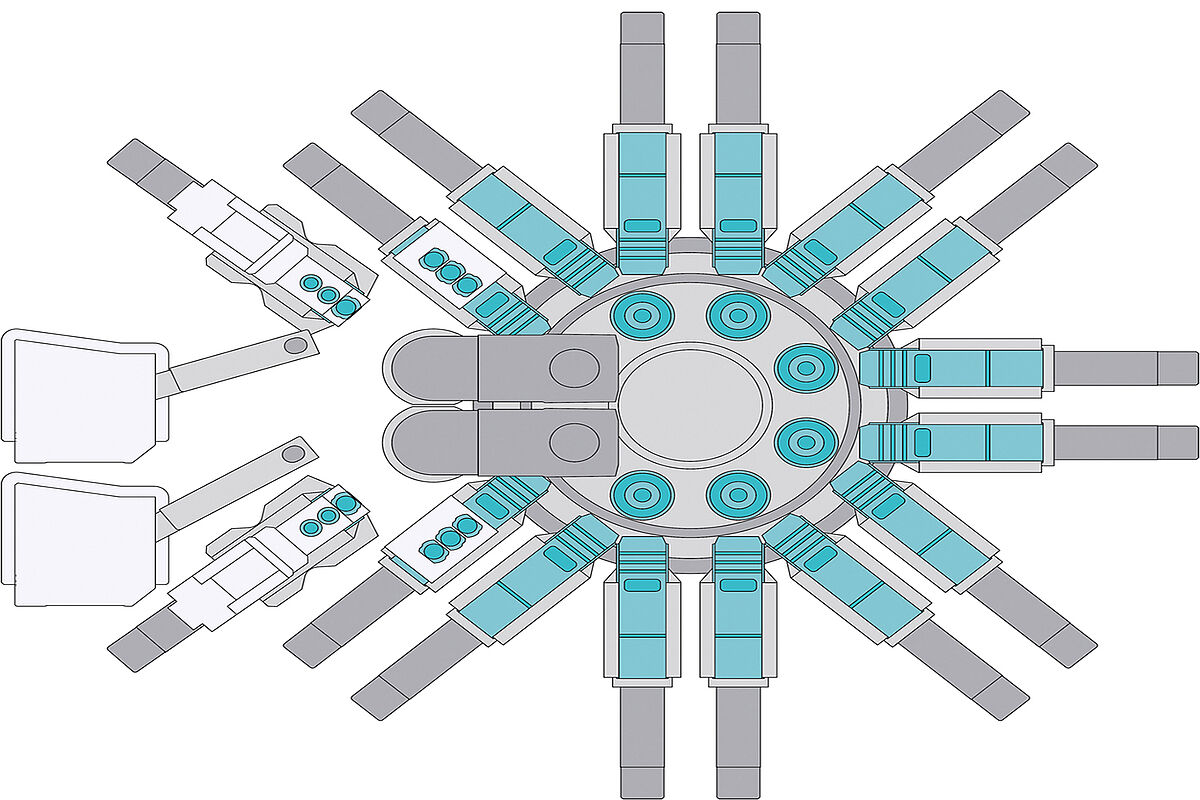

8 main spindles, up to 2 swiveling synchronous spindles and up to 16 tool carriers.


Machine highlights

Your benefits

  • Highly-dynamic slides with sliding guide (X-axis)
  • Non-wearing Z-axis due to quills with hydrostatic support
  • Chuck part machining with loading and unloading by robots
  • Up to 16 tool holders with 1 or 2 axes and optional Y-axis can be used variably

  • Versatility is the strong point of the MS22-8. Whether complex parts or different processes are involved – anything is possible
  • More options for rear end machining with hydraulically locked and extremely fast swiveling synchronous spindle

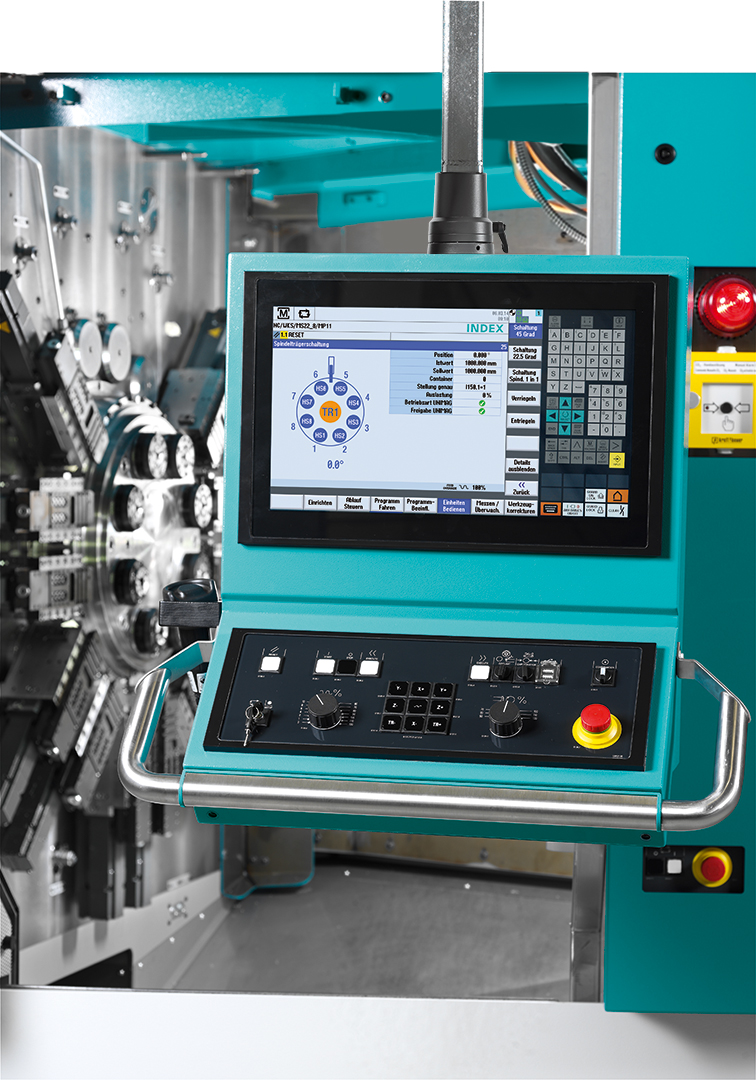

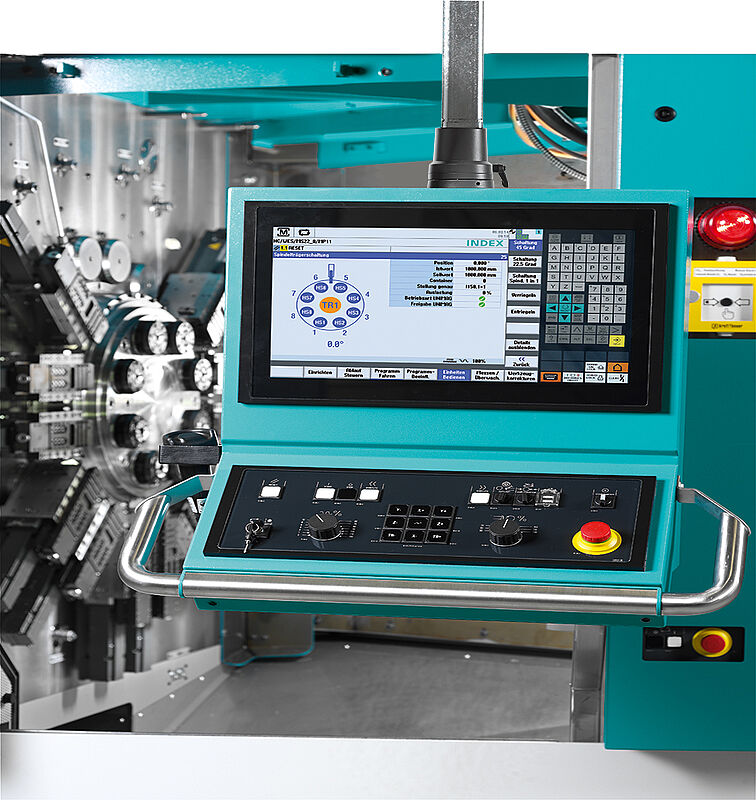

  • Already included: the operating system iXpanel i4.0 ready with 18.5” touch screen and Siemens S840D sl

MS22-8 in focus


The expansion options

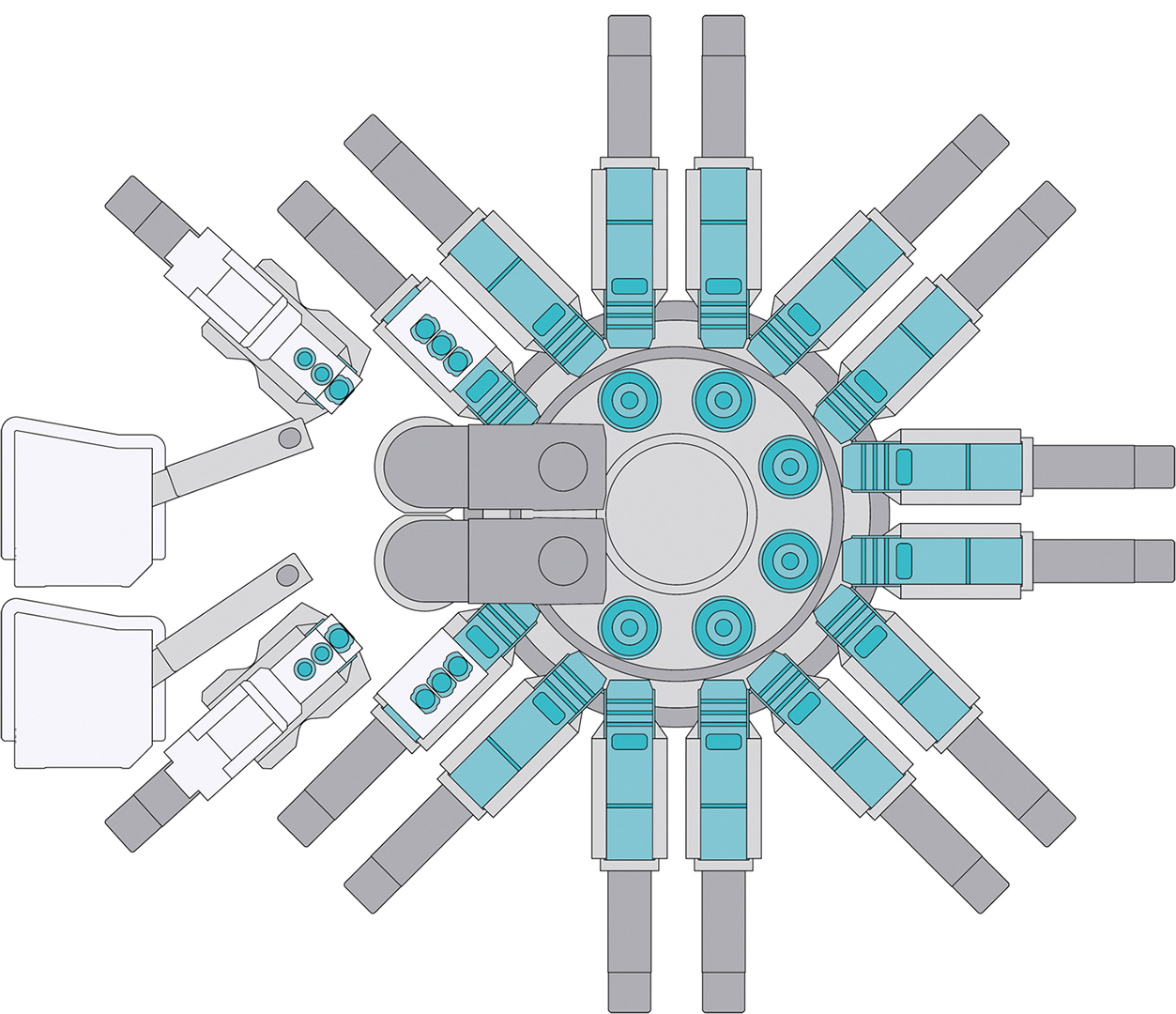

Double four-spindle machine – a profitable upgrade option

  • Additional part production time reduction due to simultaneous manufacturing of 2 workpieces
  • 14 tool carriers with 1 or 2 axes (optionally also Y-axis)
  • 2 swiveling synchronous spindles
  • 2 rear slides (option) with 3 tools each, of which up to 2 are live



Your advantage:

Two identical or two different workpieces can be machined in parallel.
Result: fast cycle times.


Eight-spindle machining with simultaneous rear end machining

  • Front end machining with up to 15 X/Z tool carriers (optional Y-axis)
  • Cutoff end machining at the same time
  • 1 swiveling synchronous spindle
  • 1 rear slide
  • Versatile machining options
  • Machining of highly complex workpieces possible



Your advantage:

Reduced cycle time with time-determining rear end machining


Pioneering multi-spindle technology

Explore the virtually limitless machining flexibility and the advantages of the INDEX MS22-8 multi-spindle turning automatic.

The adjacent animation shows you a wide variety of machining options on a multi-spindle machine.

WE NEED YOUR CONSENT!

This content is provided by Youtube.

If you activate the content, personal data may be processed and cookies set.

Accept

Technical data

expand all
Number max.
8
Bar capacity
mm
22 (24)
Speed max.
rpm
10,000
Power at 100% / 25%
kW
8DS7 / 15
Torque at 100% / 25%
Nm
10 / 18
Number max.
1 / 2
Bar capacity
mm
22 / 24
Speed max.
rpm
10,000
Power at 100% / 40%
kW
9.2 / 12
Torque at 100% / 40%
Nm
11 / 14
Slide travel Z
mm
120
Number of tools for backworking
3 / 6
Number max.
16
Slide travel X
mm
62
Slide travel Y
mm
24
Slide travel Z
mm
85
Number max.
1 / 2
Slide travel X
mm
62
Number of tools for backworking
3 / 6
Weight
kg
7,100
Connecting power
kW
53-77
Siemens
S840D sl
Multi-Touch Screen
18.5"
